TECUMSEH CARBURETOR 632774
Air Inlet view of the Tecumseh carburetor 632774
Fuel Inlet of the Tecumseh Carburetor 632774
The Throttle Plate Tecumseh Carburetor 632774
Main Jet adjustment Tecumseh Carburetor 632774
| REFERENCE NUMBER |
TECUMSEH PART NUMBER |
DESCRIPTION |
|---|---|---|

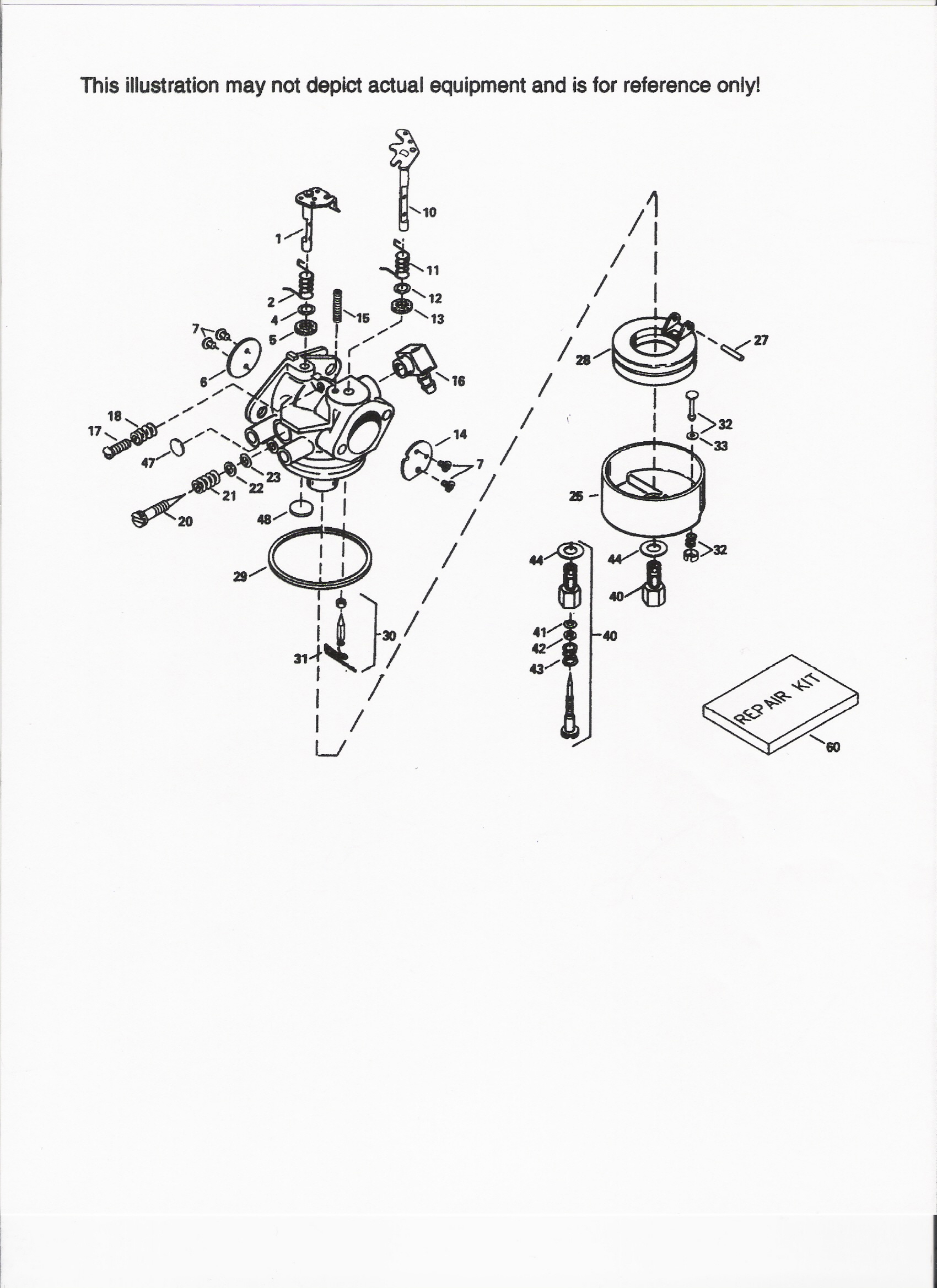

 This image is for illustration only, may not be exact. |
632774 | TECUMSEH CARBURETOR COMPLETE |
| 1 | 632649 | THROTTLE SHAFT AND LEVER ASSY. |
| 1A | 36288 | BUSHING |
| 2 | 632685 | THROTTLE RETURN SPRING |
| 4 | 631184 | DUST SEAL WASHER |
| 5 | 631183 | DUST SEAL (THROTTLE) |
| 6 | 632517 | THROTTLE SHUTTER |
| 7 | 650506 | SHUTTER SCREW |
| 10 | 632472 | CHOKE SHAFT AND LEVER ASSY. |
| 11 | 632473 | CHOKE RETURN SPRING |
| 12 | 631184 | DUST SEAL WASHER |
| 13 | 631183 | DUST SEAL (CHOKE) |
| 14 | 632429A | CHOKE SHUTTER |
| 16 | 632527 | FUEL FITTING |
| 17 | 651025 | THROTTLE CRACK SCREW/IDLE SPEED SCREW |
| 18 | 630766 | TENSION SPRING |
| 20 | 632281 | IDLE MIXTURE SCREW |
| 21 | 630766 | TENSION SPRING |
| 22 | 630739 | IDLE MIXTURE SCREW WASHER |
| 23 | 630740 | IDLE MIXTURE SCREW "O-RING" |
| 25 | 631867 | FLOAT BOWL ASSY. |
| 27 | 631024 | FLOAT SHAFT |
| 28 | 632019 | FLOAT |
| 29 | 631028 | FLOAT BOWL "O-RING" |
| 30 | 631021 | INLET NEEDLE, SEAT AND CLIP (INCLUDES 31) |
| 31 | 631022 | SPRING CLIP |
| 40 | 632239 | MAIN ADJUSTMENT (INCLUDES 41 THRU 44) |
| 41 | 630740 | O-RING |
| 42 | 630739 | WASHER |
| 43 | 630738 | SPRING |
| 44 | 27110A | BOWL NUT WASHER |
| 47 | 630748 | WELCH PLUG |
| 48 | 631027 | WELCH PLUG |
| 60 | 632760 | REPAIR KIT |
