WAYNE BURNER MOTORS
Information from the motor will not help us to identify your fan.
| WAYNE PART NUMBER | PART DESCRIPTION |
|---|---|
| 101126-001 | REPLACED BY 101126-002 |
| 101126-002 KIT MOTOR REPLACE 12V MOD. MSR |
REPLACES 101126-001 |
| 101126-003 | KIT MOTOR REPLACE 12V MOD. MSR E 2VDC, INCLUDES FAN |
| 20383 | 1/4 HP 120VAC 60HZ 3450 RPM |
| 20554 1/5 HP WAYNE BURNER MOTOR 24003-001 | USE 21569 WAYNE BURNER MOTOR SAME AS 20554 MOTOR |

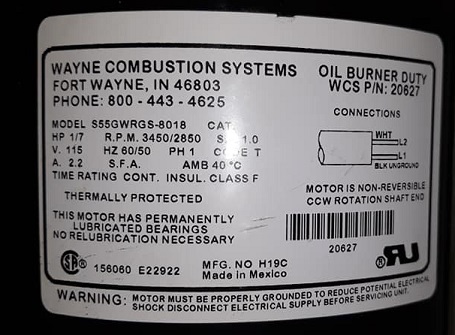

| WAYNE MOTOR 20627
1/7 HP 120V/50-60Hz
|
|
| 20892 | 240 VOLT AC 1/7 HP |
| 21569 MOTOR 1/5HP 120V 60Hz 3450RPM USED ON WAYNE BURNER MODELS EHA, EHASR
SAME AS WAYNE 20554 BURNER MOTOR WAYNE BURNER MOTOR 24003-001 |
|
| 21993-001 | 12 VOLT DC 1/5 HP |
|

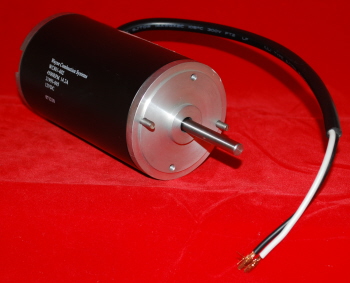

WAYNE 21993-005
4500 RPM WAYNE WC801-002 12 VOLT DC 1/5 HP
|
WAYNE 21993-005 IS REPLACED BY 21993-006 FOUND BELOW IN THIS SAME TABLE. |
|
WAYNE 21993-006
3950 RPM MOTOR-12VDC 3950RPM MODEL MSR-DC WC801001
|
|
| 23000-SER | MOTOR-PSC 1/6HP 120V/60Hz 3450RPM MODEL MSR |
| 23000-KITM | MOTOR KIT-PSC 1/6HP 120V/60Hz 3450RPM CONVERT M SERIES BURNERS TO PCS MOTOR |
