POWERMATE ELECTRICAL PARTS and Prices

COLEMAN
PART NUMBER
PART
DESCRIPTION
NOTES
65134 22 mf CAPACITOR USED ON COLEMAN POWERMATE GENERATOR
0065134 CAPACITOR
S0065134 CAPACITOR
0065134SRV CAPACITOR

CBB61 SH 450V 500V AC
20/75/21 CAPACITOR E232607 E187207

65134 IS NO LONGER AVAILABLE

REPLACED WITH 65134A SOLD BELOW

65134A REPLACES THE 65134

24mf CBB61 SUITABLE REPLACEMENT FOR THE 65134 22mf


65134A REPLACES THE 65134

CBB61 SH
-20/70/21

CAPACITOR


22mf shown

002-0060
0002-0060
00 002-0060
CIRCUIT BREAKER 50 AMP CONTACT US
002-0061
00002-0061
00 002-0061
CIRCUIT BREAKER 45 AMP CONTACT US
0030148
30148
Electrical Start Switch
COLEMAN POWERMATE
GENERATOR PARTS
0034819.01
00 34819.01
34819.01
TEAPO

CAPACITOR 130mf
HD 85 C


NO LONGER AVAILABLE

USE OUR SUGGESTED CAPACITOR

CD60 FBW / E492933 CAPACITOR 220mf 200V REPLACES 34819.01

0047776
00 47776
47776

SWITCH

USE 56207

USE 56207
0048677
00 48677
48677

BRIDGE DIODE

0049202
CONNECTOR,
TERMINAL PIN
0049203
CONNECTOR,
TERMINAL SOCKET
37796
0037796
00 37796
CIRCUIT BREAKER 15 AMP CONTACT US
0047314
00 47314
47314
FUSE HOLDER CONTACT US
0049072
00 49072
49072
CIRCUIT BREAKER 25 AMP
0047727
00 47727
47727
CIRCUIT BREAKER 15 AMP
NO LONGER AVAILABLE
0047806
00 47806
47806

USE 47806-A

CAPACITOR 7.5 UF
AC 350V TV AC 613V
SHIZUKI JAPAN

USE 47806-A
0047806
00 47806
47806

USE 47806-A

YF-TA CAPACITOR
7.5 + OR - 5%
350V
12/94

47806-A

CAPACITOR 7.5 UF
AC 350V
MERITEK TCP755J350A01

TWO SHOWN

0049382
00 49382
49382

OUR PART NUMBER
BPP-GEN-70257-A

CIRCUIT BREAKER 30 AMP
7400-3000 125VAC 50/60HZ LR65090

49459
0049459
00 49459
CIRCUIT BREAKER 18 AMP CONTACT US
49650
0049650
00 49650
CIRCUIT BREAKER 5 AMP CONTACT US
49835
0049835
0049835
CONNECTOR CONTACT US
0049853
00 49853
49853
CIRCUIT BREAKER 7 AMP

WE HAVE IN STOCK,

CALL US

49949
0049949
00 49949
CIRCUIT BREAKER 3 AMP CONTACT US
0049953
49953 CIRCUIT BREAKER 12 AMP
125VAC, 60 HZ

POWERMATE 50439 BRUSH
POWERMATE GENERATOR BRUSH 0050439
COLEMAN POWERMATE BRUSH 50439

50625.02
0050625.02
IDLE CONTROL CIRCUIT BOARD

IMAGE OF 50625.02 SHOWN
NO LONGER AVAILABLE
NO LONGER AVAILABLE
0051251
Capacitor 12 mf
350V TEAPO YF-TA
USE 51251-A
0051251-A
Capacitor
MERITEK 12mf
350VAC TCP126U350A01

CLICK HERE
TO SEE A VIDEO OF THIS CAPACITOR

51291
0051291

BUY THIS BATTERY CHARGING CABLE HERE

Battery Charging Cable Assembly.

Notice the wire and clip colors black and red. Notice specifically the color orientation and how the connector is plugged into the generator 12VDC outlet for positive and negative.

Any similar replacements may have the colors reversed WHEN COMPARED TO YOUR ORIGINAL CABLE AND ITS positive and negative POLARITY.

BUYER MUST BE AWARE THAT ANY USE OF SIMILAR CABLES WITHOUT PROPER POLARITY CAN CAUSE EQUIPMENT DAMAGE AND COULD ALSO CAUSE SERIOUS PERSONAL INJURY. Any modifications are at buyers risk. Any suggested similar cables are only for those who understand the differences and understand the risks. If you do not understand the differences please consult an electrician or suitable service repair person who can further explain.

BUY THIS BATTERY CHARGING CABLE HERE

51763
0051763
00 51763
CIRCUIT BREAKER 20 AMP CONTACT US
52057
0052057
00 52057
CIRCUIT BREAKER 9 AMP CONTACT US
52553
0052553
00 52553
CIRCUIT BREAKER 30 AMP CONTACT US
0052627

REPLACED BY 65649
MUST USE WIRE HARNESS 62490

AVR

REPLACED BY 65649
REPLACED BY 65649
0052771
S0052771
Wiring Harness
for 0052627AVR


NO LONGER AVAILABLE
0052795 AUTOMATIC VOLTAGE REGULATOR
AVR

OBSOLETE NO REPLACEMENT

REPLACED WITH 65649
54677
0054677
00 54677
CIRCUIT BREAKER 50 AMP CONTACT US
56050
0056050
00 56050
CIRCUIT BREAKER 35 AM
PREPLACED BY 56050.01
REPLACED BY 56050.01
56050.01
0056050.01
00 56050.01
CIRCUIT BREAKER 35 AMP
2500 2 POLE
CONTACT US
56092
0056092
00 56092
CIRCUIT BREAKER 40 AMP NO LONGER AVAILABLE
56136
0056136
00 56136
CIRCUIT BREAKER 25 AMP CONTACT US
56136.01
0056136.01
00 56136.01
CIRCUIT BREAKER 25 AMP CONTACT US
0056207 ROCKER SWITCH

THREE SHOWN SOLD EACH

56716
0056716
00 56716
CONNECTOR

TWO SHOWN, EACH SOLD EACH
56719
0056719
00 56719

CONNECTOR


56798
0056798
00 56798
CAPACITOR NO LONGER AVAILABLE
56886
0056886
00 56886
CIRCUIT BREAKER 60 AMP CONTACT US
56887
0056887
00 56887
CIRCUIT BREAKER 40 AMP CONTACT US
57238
0057238
00 57238
CIRCUIT BREAKER 35 AMP CONTACT US
58068
0058068
00 58068
CIRCUIT BREAKER 110 AMP CONTACT US
61078
0061078
00 61078
CIRCUIT BREAKER 20 AMP CONTACT US
61417
0061417
S0061417
S 0061417
STATOR

COLEMAN POWERMATE

GENERATOR STATORS

FOR SALE

COLEMAN POWERMATE GENERATOR STATORS
61684
0061684
00 61684
I/C MODULE CONTACT US
62198
0062198
00 62198

CIRCUIT BREAKER 20 AMP

62199
0062199
00 62199

CIRCUIT BREAKER 25 AMP

CONTACT US
62470
0062470
S0062470
ENDBELL
NO LONGER AVAILABLE
0062479
00 62479
62479
S0062479
S 0062479
AVR CIRCUIT BOARD

USE
WIRE HARNESS 62490

USE 65649
0062953
00 62953
62953
CONTROL PANEL


CLICK HERE TO BUY THIS CONTROL PANEL
0062974
00 62974
62974
S0062974
S 0062974
BRIDGE RECTIFIER BOARD REPLACED BY 63525
AND
WIRE HARNESS 64066
63059
0063059
00 63059

CIRCUIT BREAKER 19 AMP



NO LONGER AVAILABLE
COLEMAN POWERMATE 63064 CAPACITOR
0063064
00 63064
63064
S00630064
S 0063064
24mf +- 5%
300V-AC
60HZ

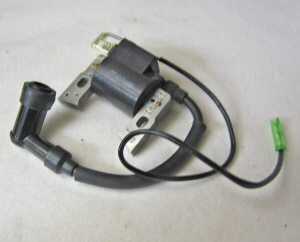

0063091
63091

SPE-175

IGNITION COIL

0063291
00 63291
63291
S0063291
S 0063291

070410 A22
AVR MODULE

0063525
00 63525
63525
S0063525
S 0063525

BRIDGE RECTIFIER BOARD


DOES NOT INCLUDE WIRE HARNESS 64066
63821
00 63821
0063821
S0063821
S 0063821
GEN HEAD
INCLUDES ROTOR 63940
AND STATOR 63941
CLICK HERE TO BUY THIS GEN HEAD
0063948
00 63948
63948
S0063948
S 0063948

070508 A30
AUTOMATIC VOLTAGE REGULATOR

REPLACED BY 63291

REPLACED BY 63291
63955
00 63955
0063955
FUEL TANK

CALL US
501-982-2930
64066
00 64066
0064066
S0064066
S 0064066
WIRE HARNESS
NO LONGER AVAILABLE
64327
0064327
IGNITION MODULE CONTACT US
65649
00 65649
0065649
S0065649
S 0065649

CIRCUIT BOARD

MUST BUY SEPARATE 62490 WIRE HARNESS

DOES NOT INCLUDES 62490 WIRE HARNESS


MORE INFORMATION ABOUT USING THE 65649 CIRCUIT BOARD

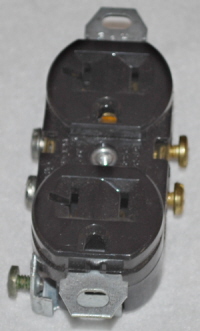

0068759
00 68759
68759

DUPLEX RECEPTACLE

G079102
079102


SPARK PLUGS FOR YOUR GENERATOR

OUR RETURN POLICY

Click on the following link if you need a SPARK PLUG for your Coleman Generator or the engine on your generator:
SPARK PLUGS
